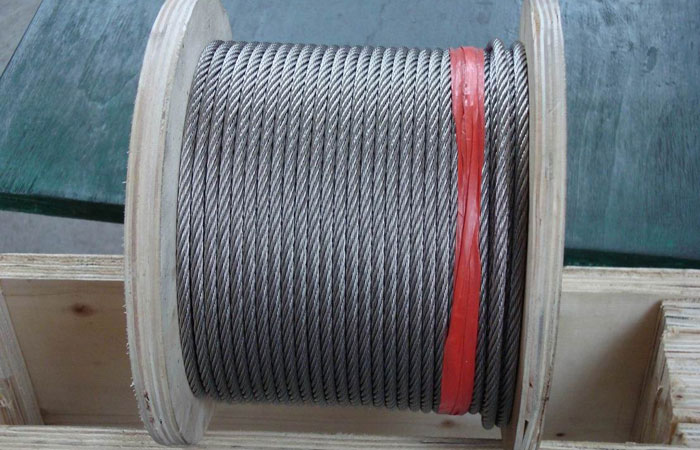

316 stainless steel wire rope high quality&cheap price
The 316 stainless steel wire rope refers to the wire rope made of stainless steel, and its Chinese standard is GB/T 9944-2015.
The stainless steel wire rope is classified according to the structure. Its typical structures are: 1x3, 1x7, 1x19, 3x7, 6x7, 6x19 (a), 6x19 (b), 8x19.
The types of stainless steel wire rope twisting:
A right-hand twist stainless steel wire rope: right twist of rope, left twist of strands;
B left alternating twist stainless steel wire rope: left twist of rope, right twist of strands
C right same direction twisted stainless steel wire rope: right twist of rope, right twist of strands;
D left same direction twisted stainless steel wire rope: left twist of rope, left strands;
E right mixed twisting stainless steel wire rope: right twist of rope, left twist of part, right twist of part share;
F left mixed twisting stainless steel wire rope: left twist of rope, right twist part of part, part of left twist.
Rope core and code :
A fiber core (natural or synthetic): FC, such as FC stainless steel wire rope.
B natural fiber core: NF, such as NF stainless steel wire rope.
C synthetic fiber core: SF, such as SF stainless steel wire rope.
D metal wire core: IWR (or IWRC), such as IWR stainless steel wire rope.
E metal wire core: IWS, such as IWS stainless steel wire rope.
316 stainless steel wire rope is the most popular in the market due to its’ good corrosion resistance, its’ chemical composition is as below:
C≤0.08，Si≤1.00，Mn≤2.00，P≤0.035，S≤0.03，Ni:10.0-14.0，Cr:16.0-18.5，Mo:2.0-3.0
Application:
Stainless steel wire rope has high temperature resistance, anti fatigue performance, breaking force, long service life, durability and other characteristics, widely used in coal, petroleum, metallurgy, chemical, electric power, shipbuilding, bridges, rubber, military, tourism, water conservancy, light industry and other industries, the product can be produced by ISO and BS DIN, ABS, LR, JIS, and other international and foreign advanced standards.
