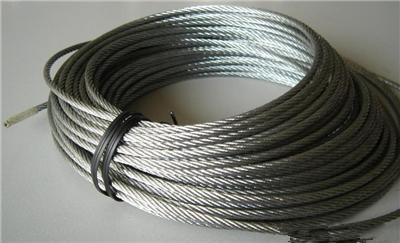

316 stainless steel wire rope

316 stainless steel wire rope

Stainless steel wire rope: using a plurality of thin wires or strands twisted flexible cord, steel wire rope is twisted into strands of multiple layers, then the cord as the center, by a number of ply twisted spirally wound cord. In the material handling machine, for lifting, pulling, tensioning and load-bearing purposes. High-strength steel wire rope, light weight, smooth, easy to suddenly break the whole root, reliable work.

Rope play a load-bearing role, and its performance is mainly determined by the wire. Stainless steel, carbon steel or alloy steel by cold drawing or cold rolling from round (or shaped) wire, high strength and toughness of the steel wire and different surface treatments based on the use of environmental conditions.

It is used to increase the flexibility and toughness of steel wire rope, wire lubrication, reduce friction and increase service life. Common cord organic fibers (such as hemp, cotton), synthetic fibers, asbestos core (high temperature) or soft metal and other materials.

1, round strand wire rope 2,braided rope 3, flat wire rope

Product Specifications: 1 * 7-2.1mm 1 * 7 2mm-3mm 1 * 7 2mm-4mm.
Structure: 1 * 2,1 * 3,1 * 7,7 * 7,3 * 7,1 * 1,6 * 19,7 * 12,7 * 7,7 * 19, 17 * 39
Rope diameter: 0.25mm - 8.0mm
The same material stainless steel wire, stainless steel bar, stainless steel pipe, stainless steel plate, stainless steel wire rope is significantly more expensive, which is the most expensive 7 * 7 shares.

A high dimensional accuracy up to ± 0.01mm;
B. excellent surface quality, good brightness;
C. has strong corrosion resistance, tensile strength and fatigue strength;
Dchemical composition and stability, steel. pure, low inclusion content;

Precipitation hardening stainless steel. With good formability and good weldability, it can be used as high strength materials in the nuclear industry, aviation and aerospace industry. System components can be divided according to Cr (SUS400), Cr-Ni system (SUS300), Cr-Mn-Ni (SUS200) and precipitation hardening systems (SUS600).

200 Series - chromium - nickel - manganese austenitic stainless steel

300 Series - chromium - nickel austenitic stainless steel

301 - scalability for molding products. It can also be hardened by the machine speed. Good weldability. Abrasion resistance and fatigue strength than 304 stainless steel.

302 304 with corrosion resistance, due to relatively high carbon intensity and therefore better.

303 - by adding a small amount of sulfur and phosphorus to more than cutting processing.

304- that is 18/8 stainless steel. GB grades for 0Cr18Ni9.

309 - 304 - better temperature resistance.

316 - After 304, the second most widely used of steel, mainly for the food industry and surgical equipment, add molybdenum to obtain a special corrosion-resistant structure. Than the 304 because it has better resistance to chloride corrosion and thus as "marine steel" to use. SS316 is often used to fuel recovery. 18/10 grade stainless steel is usually in line with the application level.

321 - not only because titanium elements to reduce the corrosion of the weld performance than the risk of material similar to 304.

400 Series - ferritic and martensitic stainless steel.

408 - heat resistance, corrosion resistance is weak, 11% Cr, 8% of Ni.

409 - the cheapest model (BAR), commonly used as automobile exhaust pipe, is a ferritic stainless steel (chrome steel).

410 - martensite (high strength chrome steel), good wear resistance, corrosion resistance is poor.

416 - added sulfur to improve the processing performance of materials.

420 - "Cutting Class" martensitic steel, similar to Brandt's first high-chromium stainless steel this. Also used in surgical tools, you can do very light.

430 ferritic stainless steel, decorative, such as for car accessories. Good shape, but heat resistance and corrosion resistance worse.

440 - high strength cutting tool steel, carbon slightly higher, after appropriate heat treatment to obtain a higher yield strength and hardness up to 58HRC, are among the most hard stainless steel. The most common application example is the "razor blades." There are three common models: 440A, 440B, 440C, in addition to 440F (easy processing).

500 series - resistant chromium alloy steel.

600 Series - martensitic precipitation hardening stainless steel.

630 - The most common type of precipitation hardening stainless steel models, often called 17-4; 17% Cr, 4% Ni.
