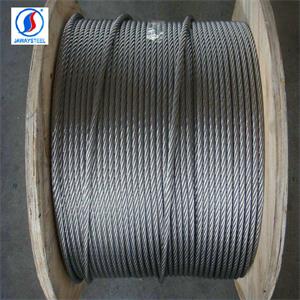

304 stainless steel wire rope
304 stainless steel is a kind of universal stainless steel material, rustproof performance is stronger than 200 series stainless steel material. High temperature resistance is also relatively good, can be high to 1000-1200 degrees.
Stainless steel wire has good high temperature resistance, fatigue resistance, breaking force, long service life, durable and other characteristics, widely used in coal, petroleum, metallurgy, chemical industry, shipbuilding, Bridges, electricity, rubber, war industry, tourism, water conservancy, light industry and other industries, products can be according to ISO, BS, DIN, JIS, ABS, LR and other international standards and foreign advanced level production.
1. In the equipment reform of chemical industry, chemical fertilizer, chemical fiber and other industries, stainless steel wire rope is used in the equipment updating, setting and deployment.
2, the application of a wide range of stainless steel welding rod and a large number of stainless steel components, springs, adjacent parts, etc., these are used stainless steel wire rope.
3. Lifting rings and hangers on electric locomotive and power line, these are the scope of stainless steel wire rope application.
4, all walks of life in the use of nylon mesh, now a considerable part of stainless steel wire rope instead.
5. Railway electrification, upholstery, rigging, fishing gear, automobile and motorcycle industry.
In the dynamic system, the wire rope is widely used in the crane and the elevator lifting, the mechanical power transmission, the automobile cockpit pole control, the airplane control system operation and so on the domain; In the static system, the suspension bridge's pulling and supporting tower's stability, the new type of railing's design and so on each profession, the steel wire rope also has the widespread application.
Wire rope refers to at least two layers of steel wire or more than one stock around a center or a cored spiral twist from the structure. It is divided into multi-strand wire rope and single-strand wire rope. Stainless steel wire rope refers to the steel wire rope twisted with stainless steel material, the product implementation of the national standard is GB/T 9944-2015.
Stainless steel wire rope according to the structure classification, its typical structure is: 1x3, 1x7, 1x19, 3x7, 6x7, 6x19(a), 6x19(b), 8x19.
Core and code
A fiber core (natural or synthetic) : FC, such as FC stainless steel wire rope.
B natural fiber core: NF, such as NF stainless steel wire rope.
C synthetic fiber core: SF, such as SF stainless steel wire rope.
D wire core: IWR(or IWRC), such as IWR stainless steel wire rope.
E wire core: IWS, such as IWS stainless steel wire rope.
