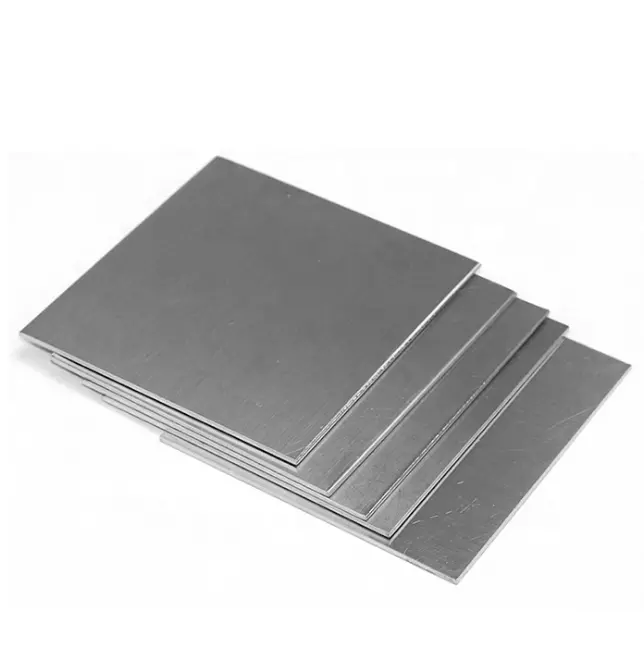

Nickel Alloys: A Technical Reference

Nickel alloys are metallic materials with nickel content typically exceeding 30 wt% (often above 50 wt% in commercial grades), combined with various alloying elements to achieve specific mechanical and chemical properties. Together with iron-based and cobalt-based alloys, they are classified as superalloys due to their exceptional performance in demanding environments.

Composition and Classification

Nickel's face-centered cubic (FCC) crystal structure remains stable from room temperature up to its melting point, providing excellent metallurgical stability and allowing substantial alloying additions without phase instability. This structural characteristic is fundamental to nickel alloys' versatility.

The primary alloy systems include nickel-copper alloys (such as Monel 400), which offer excellent resistance to alkaline solutions and seawater, making them standard materials for marine engineering and chemical processing equipment. Nickel-chromium alloys (such as Inconel 600) provide enhanced oxidation resistance and good high-temperature strength for heat treatment applications.

For the most demanding corrosive environments, nickel-chromium-molybdenum alloys (such as Hastelloy C-276) deliver exceptional resistance to both oxidizing and reducing acids, with outstanding resistance to pitting and crevice corrosion. Nickel-molybdenum alloys are specifically designed for hydrochloric acid service under reducing conditions.

Specialized categories include nickel-iron alloys with controlled thermal expansion properties, such as Invar 36 used in precision instruments, and nickel-titanium alloys exhibiting shape memory and superelasticity for medical devices and actuators.

Alloying Elements and Functions

Chromium imparts oxidation resistance at elevated temperatures and enhances pitting resistance in chloride environments, typically present at 15-25% in corrosion-resistant grades. Molybdenum provides solid-solution strengthening and improves resistance to reducing acids, particularly hydrochloric and sulfuric acids.

Aluminum and titanium enable precipitation hardening through formation of coherent gamma prime phase, Ni₃(Al, Ti), which is essential for high-temperature creep resistance. Tungsten functions similarly to molybdenum, improving resistance to reducing acids and enhancing high-temperature strength.

Trace additions of boron, zirconium, and magnesium segregate to grain boundaries, enhancing creep resistance and hot workability without significantly affecting bulk composition.

Microstructure and Strengthening Mechanisms

The exceptional high-temperature performance derives from specific microstructural features. The FCC austenitic matrix provides inherent ductility and stability with multiple slip systems enabling plastic deformation without embrittlement.

Strengthening occurs through several mechanisms. The gamma prime phase, an ordered intermetallic compound typically Ni₃(Al, Ti), remains coherent with the matrix and provides significant strengthening through dislocation interactions while maintaining ductility. In alloys such as Inconel 718, the gamma double-prime phase provides substantial strengthening at intermediate temperatures.

Carbides of various types precipitate primarily at grain boundaries. When present as discontinuous particles, they inhibit grain boundary sliding during creep deformation without creating continuous brittle networks.

Performance Characteristics

Nickel alloys maintain useful mechanical properties up to 1100°C, significantly higher than conventional steels. The combination of stable precipitates and grain-boundary carbides provides exceptional resistance to creep deformation.

Corrosion resistance is tailored through composition: nickel-copper alloys resist hydrofluoric acid and seawater; nickel-chromium-molybdenum alloys handle mixed acids and chlorides under both oxidizing and reducing conditions; nickel-chromium alloys resist high-temperature oxidation and organic acids.

Certain nickel alloys exhibit unique physical characteristics including near-zero thermal expansion, soft magnetic properties, shape memory, superelasticity, and high electrical resistivity for specialized applications.
