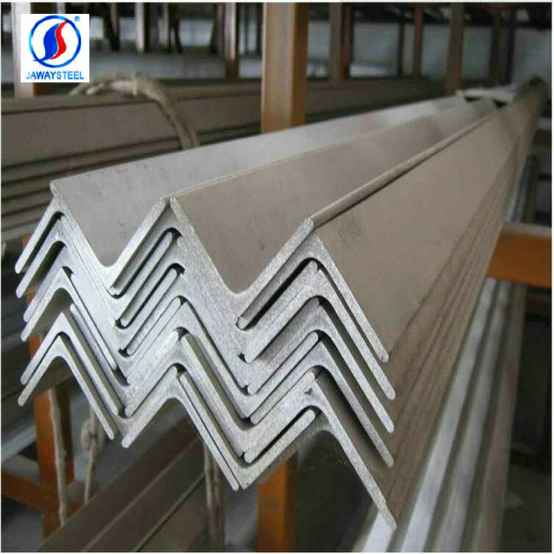

316L stainless steel angle in stock

        Stainless steel angle steel is a long strip of steel whose two sides are perpendicular to each other.


        product description


        Its specifications are expressed in millimeters of side width × side width × side thickness. For example, "∠25×25×3" means an equilateral stainless steel angle with a side width of 25 mm and a side thickness of 3 mm. It can also be expressed by model number, which is the number of centimeters of side width, such as ∠3#. The model number does not indicate the dimensions of different side thicknesses in the same model, so fill in the side width and side thickness dimensions of the stainless steel angle in the contract and other documents, and avoid using the model number alone. The specification of hot-rolled equilateral stainless steel angle steel is 2#-20#.



        Stainless steel angle steel can be composed of various stress-bearing components according to different needs of the structure, and can also be used as a connection between components. It is widely used in various building structures and engineering structures, such as house beams, bridges[/url], power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.


        Types and specifications


        It is mainly divided into two types: equilateral stainless steel angle steel and unequal side stainless steel angle steel. Among them, unequal side stainless steel angle steel can be divided into unequal side thickness and unequal side thickness.


        Stock details


        Grade:304,316


        Size


        1. Width 20mmx20mm; thickness 3mm


        2. Width 25mmx25mm ; thickness 3mm, 4mm, 5mm 3, width 30mmx30mm ; thickness 3mm, 4mm, 5mm 4, width 40mmx40mm ; thickness 3mm, 4mm, 5mm, 6mm


        5. Width 50mmx50mm; thickness 3mm, 4mm, 5mm, 6mm, 7mm, 8mm 6, width 60mmx60mm ; thickness 5mm, 6mm, 7mm, 8mm 7, width 65mmx65mm ; thickness mm, 6mm, 7mm, 8mm


        8. Width 70mmx70mm ; thickness 6mm, 7mm, 8mm, 9mm, 10mm 9, width 75mmx75mm ;   thickness 6mm, 7mm, 8mm, 9mm, 10mm 10, width 80mmx80mm ; thickness 7mm, 8mm, 9mm, 10mm mm, width 100mmx100mm , 9mm, 10mm, 12mm







Related Products


In order to offer you the exact quotaiton, could you pls kindly inform us the detailed item, size, material grade, quantity and other requirements. (And our MOQ is 1ton)
