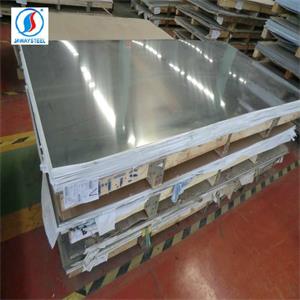

316L Stainless Steel Plate
316L stainless steel plate is an alloy metal steel. 316L stainless steel plate according to the test: 316L stainless steel due to the addition of Mo, corrosion resistance, especially pitting resistance is excellent; high temperature strength is also good; excellent work hardening (weak magnetic after processing); solid solution state is non-magnetic. 316L stainless steel grade: 00Cr17Ni14Mo2 The new national standard is: 022Cr17Ni12Mo2.
1. characteristics
1) The appearance of cold rolled products is good and beautiful;
2) Excellent corrosion resistance, especially pitting resistance due to the addition of Mo;
3) Excellent high temperature strength; transferred from "I want stainless steel"
4) Excellent work hardening (weak magnetic properties after processing)
5) the solution state is non-magnetic;
6) Relative to 304 stainless steel, the price is higher.
2. Scope of application: pipelines, heat exchangers, food industry, chemical industry, etc.
Uses: equipment for seawater use, chemicals, dyes, paper, oxalic acid, fertilizer, etc.; photograph,food industry, coastal facilities, ropes, CD rods, bolts, nuts.
3. Chemical composition(%)
C≤0.03,Si≤1.00,Mn≤2.00,P≤0.035,S≤0.03,Ni: 10.0-14.0,Cr: 16.0-18.0,Mo: 2.0-3.0
4.Mechanical properties
Tensile strength (Mpa) 620 MIN
Yield strength (Mpa) 310 MIN
Elongation (%) 30 MIN
Area reduction (%) 40 MIN
5.heat treatment
Melting point: 1375~1450 °C;
Solution treatment: 1010~1150 °C.
6. the state of use
1) Annealing solution state:
Surface states such as NO.1, 2B, N0.4, HL
Jawaysteel Corporation,stainless steel sheet supplier from China,founded in 1998, is a professional manufacturer and global exporter specializing in metal manufacture and exportation. In recent years, winged by rapid merge and expansion,Our well-equipped plant emerged in Dainan, Jiangsu Province, with two Export offices respectively located in Shanghai and HongKong catering.Export offices respectively located in Shanghai and HongKong catering to a lager scale of customers from both home and abroad under the banner of supreme service.
