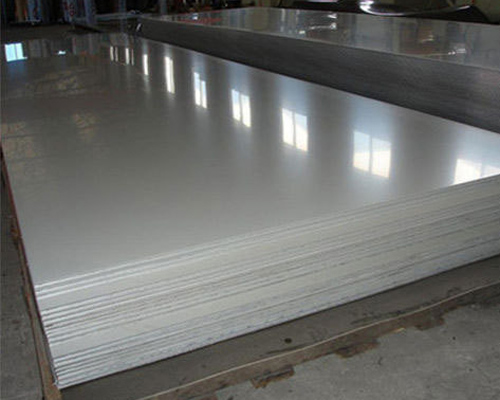

202 stainless steel plate(factory price)
202 stainless steel plate is less important in resistant to corrosion than 304, and 304L contains less carbon. The long time heating of 202 stainless steel plate in the temperature range of chromium carbide may affect the alloy 317 stainless steel plate and 904L in the bad corrosive medium.
The main chemical composition of 202 stainless steel plate :
C:≤0.15, Mn:5.5～7.50, Cr:16.0～18.0, P:≤0.060, S:≤0.030
| 202/sheet Tolerance range table | ||||
| specification | Great difference | Normal | Small Difference | No tolerance |
| 0.4MM | 0.3-0.32 | 0.33-0.37 | 0.37-0.39 | 0.39以上 |
| 0.5MM | 0.4-0.42 | 0.43-0.47 | 0.47-0.49 | 0.49以上 |
| 0.6MM | 0.5-0.52 | 0.53-0.56 | 0.57-0.59 | 0.59以上 |
| 0.7MM | 0.6-0.62 | 0.63-0.67 | 0.67-0.69 | 0.69以上 |
| 0.8MM | 0.7-0.72 | 0.73-0.77 | 0.74-0.79 | 0.79以上 |
| 0.9MM | 0.8-0.82 | 0.83-0.87 | 0.87-0.89 | 0.89以上 |
| 1.0MM | 0.89-0.9 | 0.91-0.94 | 0.94-0.99 | 0.99以上 |
| 1.2MM | 1.02-1.08 | 1.09-1.15 | 1.16-1.18 | 1.18以上 |
| 1.5MM | 1.32-1.38 | 1.39-1.45 | 1.46-1.48 | 1.48以上 |
| 2.0MM | 1.72-1.79 | 1.8-1.86 | 1.87-1.9 | 1.9以上 |
| 2.5MM | 2.23-2.36 | 2.32-2.42 | 2.42-2.47 | 2.48以上 |
| 3.0MM | 2.7-2.77 | 2.78-2.85 | 2.85-2.9 | 2.9以上 |
The standard size of 202 stainless steel plate:
Width: 1220mm、1250mm、1800mm、2000mm
Thickness below 3.5mm, normally it is 2B finish
