DNV A36 (NVA36) NV Ship-building Steel Plate&Bar

DNV A36 (NVA36) NV Ship-building Steel Plate&Bar  DNV A36 (NVA36) NV Ship-building Steel Plate&Bar

Application:manufacturing hull, maritime oil extraction drilling platform, platform tube junction and other structural components.



1. Equivalent steel standard of NV A36?

Equivalent steel grade of NV A36

ABS

GL

LR

BV

CCS

NK

KR

RINA

AB/A36

GL-A36

LR/A36

BV/A36

CCS/A36

K A36

R A36

RI/A36



2. What’s the chemical composition of NV A36?

NV A36 high Strength Chemical Composition

Grade

The Element Max(%)

C

Si

Mn

P

S

Al

N

NV A36

0.18

0.10-0.50

0.9-1.6

0.035

0.035

0.015-0.08

-

Nb

V

Ti

Cu

Cr

Ni

Mo

0.02-0.05

0.05-0.10

0.02

0.035

0.20

0.40

0.08

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq =
C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%



3. What’s the physical properties of NV A36?

NV A36 high general strength property

Grade



Mechanical Property

Charpy V Impact Test

Thickness

Yield

Tensile

Elongation

Degree

Energy 1

Energy 2

NV A36

mm

Min Mpa

Mpa

Min %

0

J

J

t50

355

490-620

21

24

34

50<t70

355

490-620

21

27

41

70<t150

355

490-620

21

34

50



Note:Energy 1 is transverse impact test,Energy 2 is longitudinal

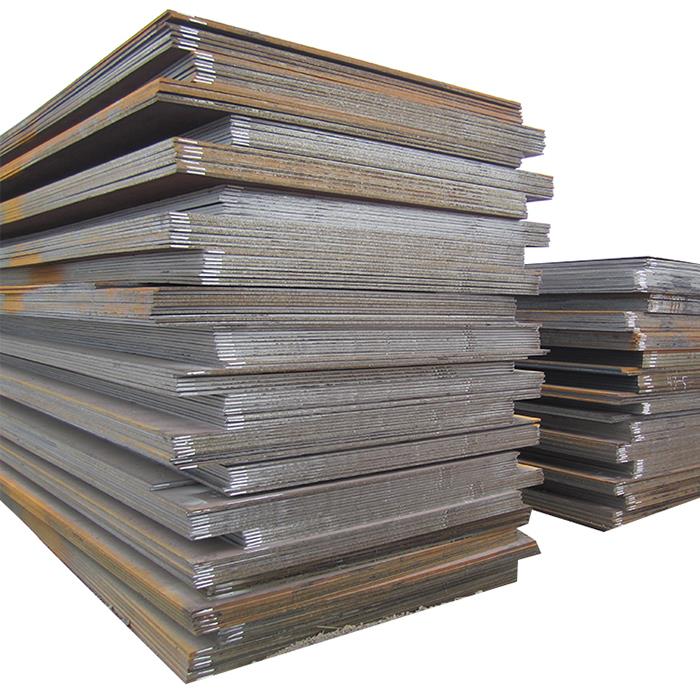

4.Product showcase
