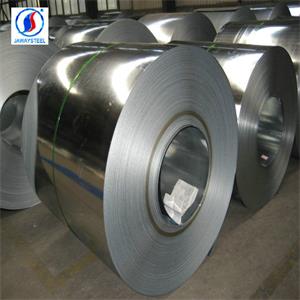

Electro Galvanized Steel Coil
Electro galvanized steel coil (SECC): It is resistant to fingerprints, has excellent corrosion resistance, and maintains the processability of cold-rolled coils.It is a stamping material that is coated with a zinc layer on the surface of the cold rolled sheet. Anti-rust and corrosion resistance. The price is relatively high.The general plate thickness is 0.4~3.2mm.The SECC surface is coated with oil SECC-O, SECC-N5 is resistant to fingerprinting, and SECC-P is phosphating.
Zinc layer code: E8, E16, E24, E32
Symbols: S-Steel, E-Electrodeposition, C-Cold Cold, Fourth C-Common, D-Draw, E-Deep ).
Zinc layer code: E-galvanized layer. 8, 16, 24, 32 indicate the amount of zinc adhesion, and the unit is g/m2.The thickness of the plating layer (single side) was 1.4 μ, 4.2 μ, and 7.0 μ.
Surface treatment code: C-chromic acid treatment, O-oil coating, P-phosphoric acid treatment, S-chromic acid treatment + oil coating, Q-phosphoric acid treatment + oil coating, M-non-treatment.
Mark: Product name (steel plate or steel strip), standard number, grade, surface treatment category, zinc layer code, specification and size, and shape accuracy of this product.
Marking example: steel plate, standard number Q/BQB430, grade SECC, surface chromic acid passivation treatment (C), zinc layer code 20/20, thickness 0.80mm, width 1000mm, normal precision (A), length 2000mm, unevenness Ordinary unevenness accuracy PF.A, marked as: Q/BQB 430 SECC-C-20/20 Steel plate: 0.80B×1000A×2000A-PF.A
Origin: Baosteel, South Korea Pohang, Japan Kobe Steel, Germany Krupp Steel Plant, Belgium CKRM, etc.
Uses: Home appliances, computer casings,Automobiles, household appliances, office machines, construction, production machinery, clean industry etc.
Jawaysteel Corporation, Electro galvanized steel coil supplier from China,founded in 1998, is a professional manufacturer and global exporter specializing in metal manufacture and exportation. In recent years, winged by rapid merge and expansion,Our well-equipped plant emerged in Dainan, Jiangsu Province, with two Export offices respectively located in Shanghai and HongKong catering.Export offices respectively located in Shanghai and HongKong catering to a lager scale of customers from both home and abroad under the banner of supreme service.
If you interested in Electro galvanized steel coil,please contact us.
