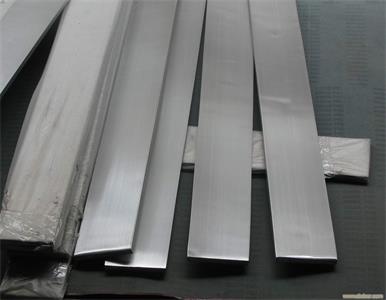

316L stainless steel flat bar

  316L Stainless Plate, the most widely used of the stainless and heat resisting steels. 316L stainless plate offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres and marine environments Typical specifications.Grade of stainless steel 316LL flat bar is 316L, its bundle of delivery, the bundle passes, bundle length should be specified. 316L stainless steel flat bar is generally delivered in bare loading, and the moisture protection should be paid attention to in transportation and storage.

  The stainless steel flat bar is rectangular in shape and with pure edge steel.

  316L Stainless steel flat bar can be a semi-finished product. It can be devided into two types: cold drawn polished stainless steel flat bar and hot - rolled acid white sanding stainless steel flat bar.

  316L stainless steel flat bar can make up various force components and can be used as connectors according to the different needs of the structure. It can be widely used in a variety of architectural and engineering structures, such as beams, bridges, towers, hoisting and conveying machinery, ships, industrial furnace, reaction tower, container rack and warehouse shelves.

316L stainless steel flat bar

  Performance test

  Test method of folding (1)

  (1) the tensile test method. Method for inspection of commonly used standard GB/T228-87, JISZ2201, JISZ2241, ASTMA370, BS18, C, f is 1497 and DIN50145; bending test method. Method for inspection of commonly used standard GB/T232-88, JISZ2204, JISZ2248, ASTME290, F, C and DIN50111 is 14019.

  Folding (2) performance index

  The test items for testing the properties of stainless steel flat steel are tensile test and bending test. The indexes include yield point, tensile strength, elongation and flexural qualification.

  physical property:

  Tensile strength:≥485

  Yield strength:≥170

  Elongation:≥40

  Chemical composition:

  C :≤0.030,Si:≤1.00,Mn:≤2.00,S :≤0.030,P :≤0.045,Cr:16.00~18.00,Ni:10.00~14.00,Mo:2.00~3.00
